FRP 38x6mm Grit Surface, 38x38mm square, 1220x3660mm

FRP 38x6mm Grit Surface 38x38mm square, 1220x3660mm - Image 2

FRP (G386IGG1) forms the base of this Prefab Bridge prototype designed and fabricated by Ecoshelta, for Garigal National Park

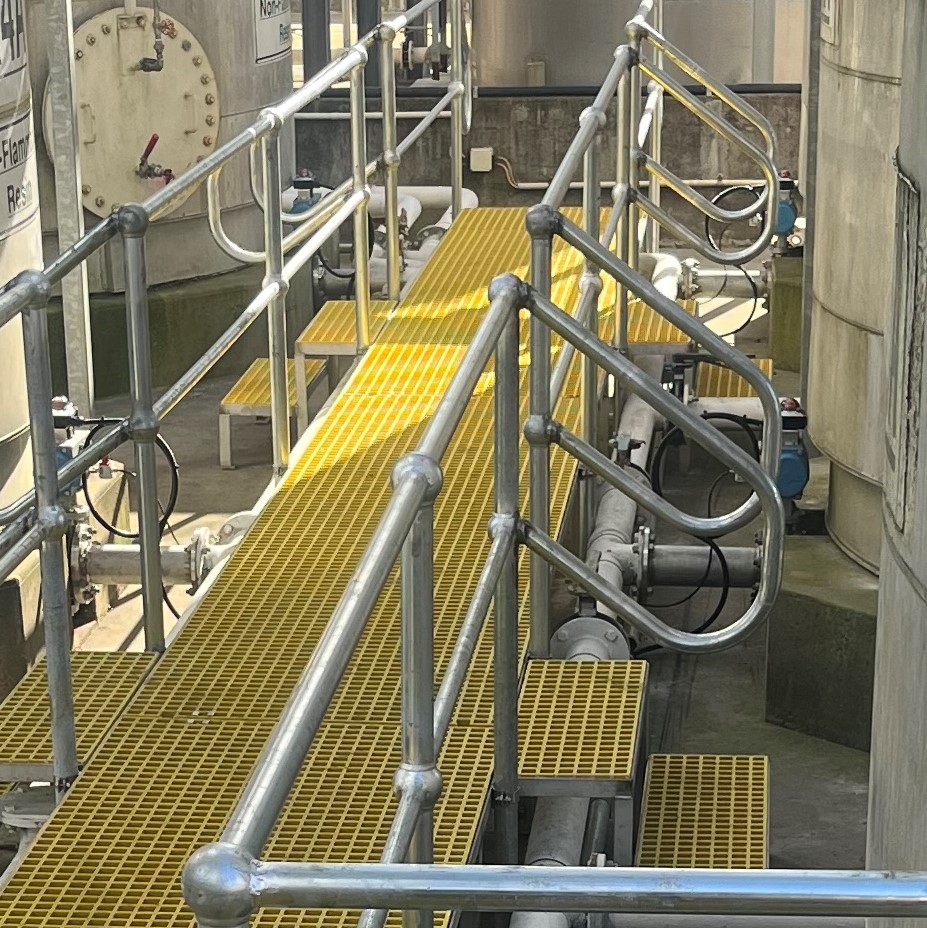

Webforge Locker FRP grating walkway and Monowills Stanchions

FRP 38x6mm Grit Surface 38x38mm square, 1220x3660mm

Name: FRP 38x6mm Grit Surface 38x38mm square, 1220x3660mm - Meshstore
Brand: WEBFORGE LOCKER
SKU: G386_MAIN
Availability: InStock

Price range: $645.22 through $827.54 ex GST

Frp-material

Colour

Clear

Compare

Wishlist

Remove

SKU: G386_MAIN Categories: FRP, General Purpose Mesh, Grating, Walkway and Flooring Tags: FRP, gangway, Isopthalic, marine, non-slip, platforms, ramps, Stairs, treads, vinyl ester, walkways, webforge

Description
Specifications

Fibre Reinforced plastic sheets with 38 x 6mm loadbars, at 38 x 38mm centres. Available in Vinyl Ester or Isopthalic Polester Resin. The sheets are rendered anti-skid by a coarse grit that is embedded into the top surface, sheets are available in range of colours to suit the needs of your project.

Weight	N/A
Dimensions	3660 × 1220 × 38 mm
Frp-material	Isopthalic, Vinyl Ester
Overall height (mm)	38
Weight per sqm (kg/m2)	18.29, 19.03
Hole Shape	Square
Material Finish	Grit
Colour	Green, Yellow
Open Area	68%
