Fabricated Hot Dip Galvanised Stair Tread (A Pattern)

Price range: $87.85 through $146.66 ex GST

- +
Compare

Custom Fabricated Stair Treads, Fabricated from A pattern grating, (Loadbars at 30mm centres and crossrods at 100mm centres) with 25 x 5mm or 32 x 5mm loadbars, Serrated or a plain surface, Treads can have a weld in or a bolt in endplates and be supplied with or without yellow abrasive nosing.

Treads Widths available via Meshstore are 245 or 275

Tread Lengths range from 600-750 or 755-1200mm

Please state the tread size in the order notes

If you require a tread outside of these sizes please contact the sales team on wlcustomerservice@valmont.com.au

Loadbar Pattern

A Pattern-30 x 100

Material

Unit of Sale

Material Finish

Tread Type

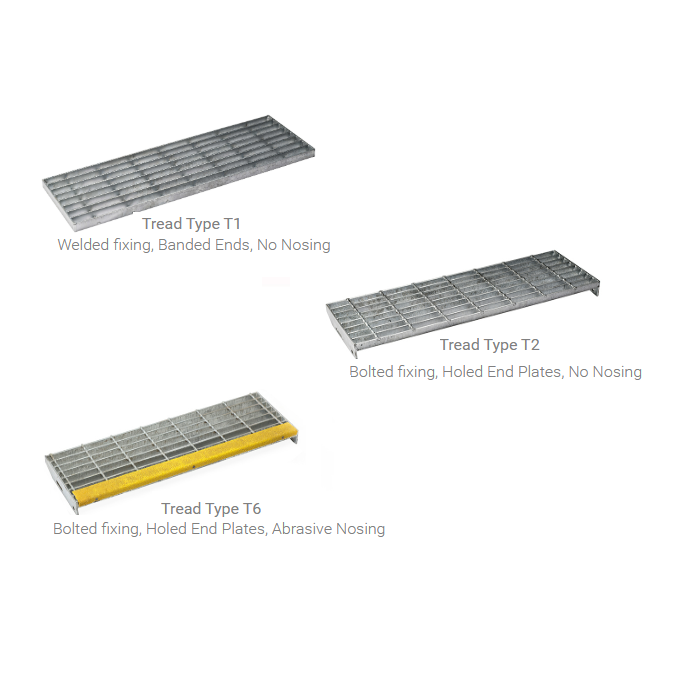

T1-Welded Endplate-No nosing, T2-Bolted Endplate-No Nosing, T6-Bolted Endplate-Yellow Nosing

Loadbar Depth x Thickness (mm)

25 x 5mm, 32 x 5mm

Surface Finish

,

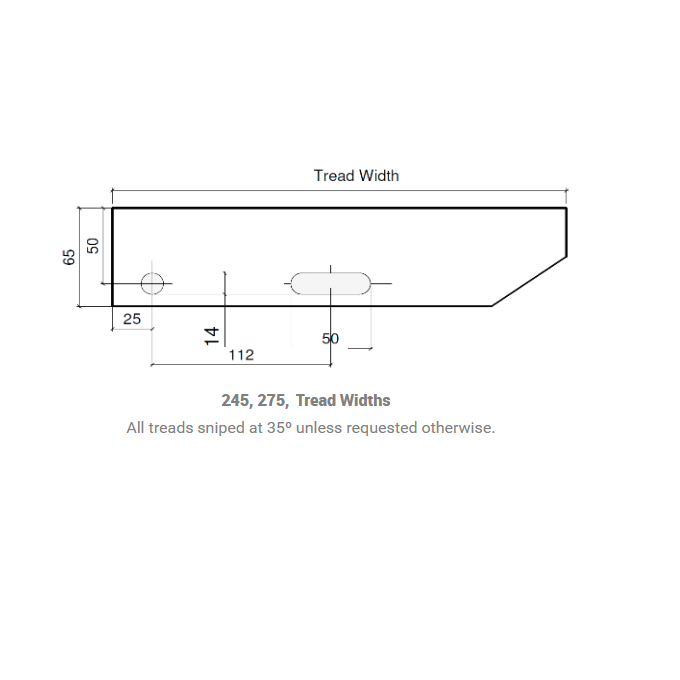

Tread (Width x Length)

245/275 X 755 to 1200mm, 245/275 X 600 to 750mm
