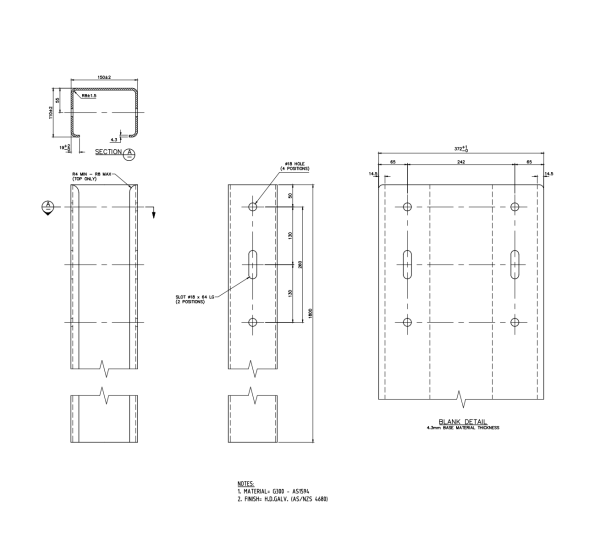

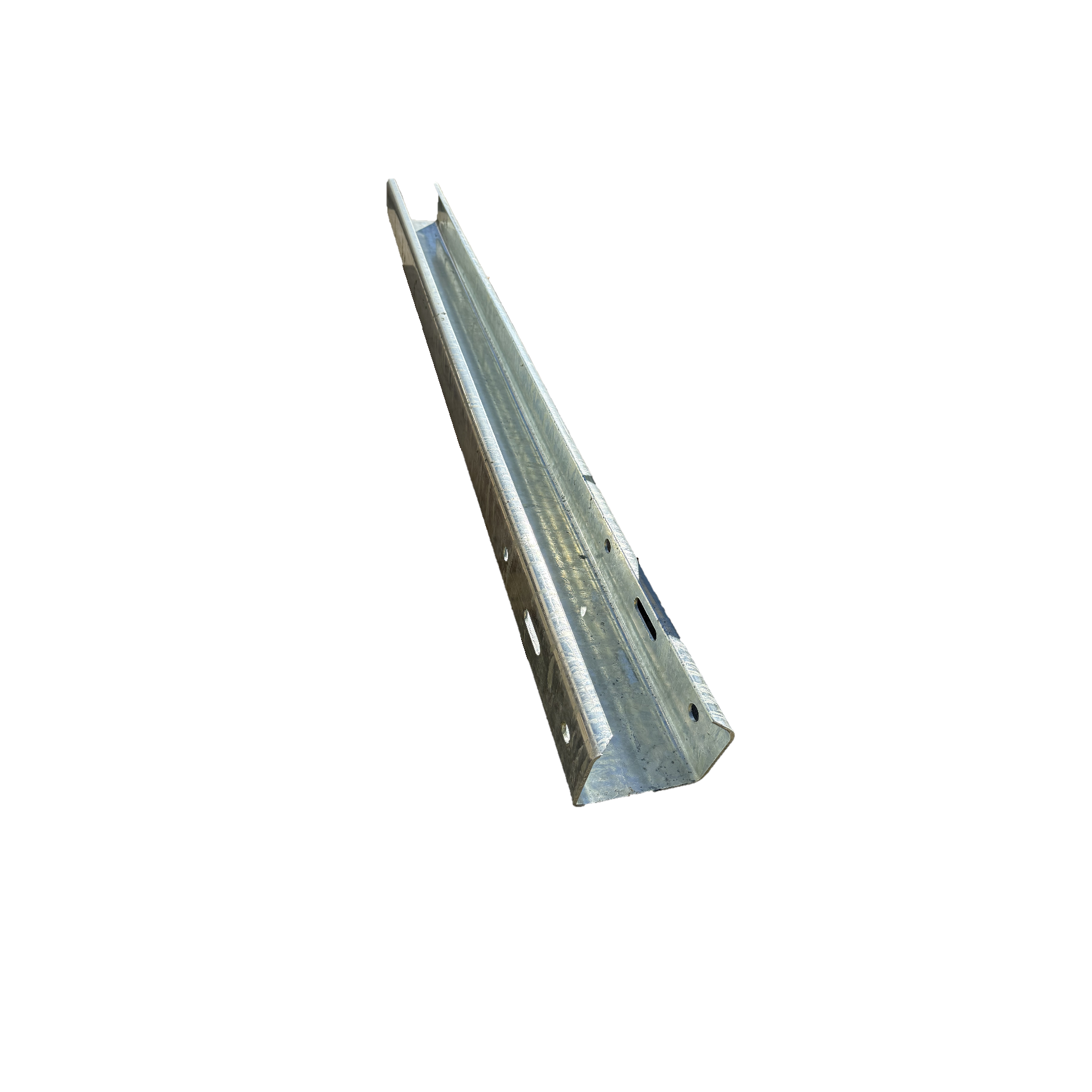

INGAL Civils, C Post has an overall height of 1800mm (C Post), Designed to be cast into Concrete. Hot Dip Galvanized Finish to AS4680. Typical Post Spacing: 2000mm. Deflection: Untested to AS/NZS 1170.1:2002
Rigid Post Applications, Suitable for glancing blow collisions at low speeds with light vehicles. e.g. internal and external barrier protection for walls in warehouses and logistic depots
Note: For very light impacts, the inherent strength of a steel barrier, rigidly mounted may be sufficient to withstand impacts without suffering damage. However, the full load of any impact is passed through the barrier into the holding down bolts. Stronger impacts will therefore result in damage to the impacting vehicle, the barrier and the foundations. Rigid posts are available as C posts
