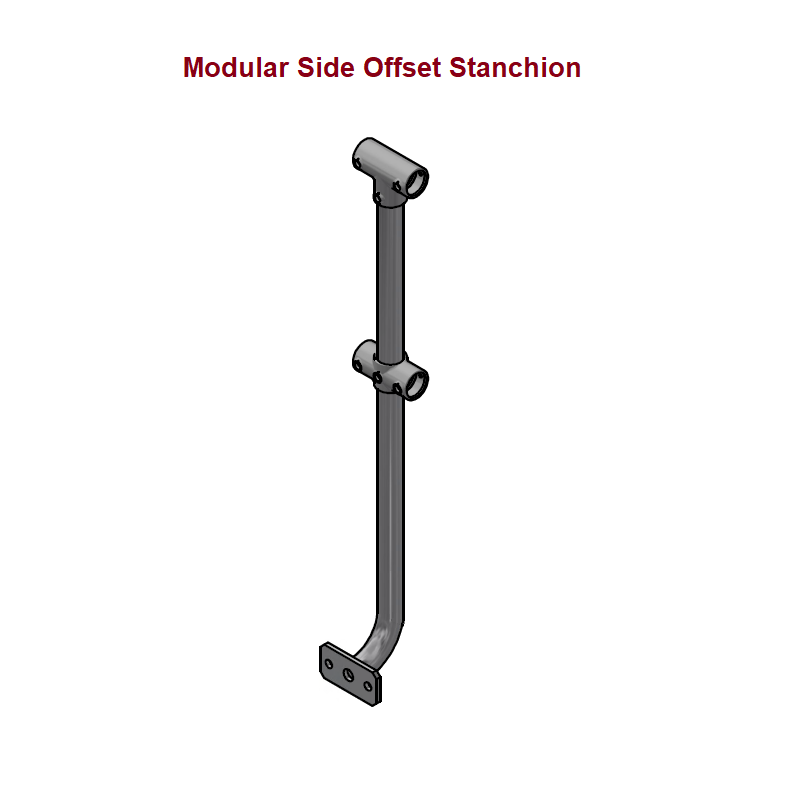

Modular Side Offset Stanchion, Welded base, 32 or 40 Nominal Bore upright

Side Offset Stanchion , Welded Base, Monowills Link Modular Railing

Name: Side Offset Stanchion , Welded Base, Monowills Link Modular Railing - Meshstore
Brand: WEBFORGE LOCKER
SKU: ML-SOMAIN
Availability: InStock

$97.44 – $111.65 ex GST

Rail Size

Drill

Kickplate Orientation & Height

Offset

Clear

Compare

Wishlist

Remove

SKU: ML-SOMAIN Categories: Modular Handrail Systems, Monowills Link Industrial Handrail, Safety Barrier, Stanchions Tags: 32NB, 40NB, AS1170, guard rail, handrail, Link, mild steel, modular, Monolink, monowills, platform, ramps, safety barriers, Stairs, stanchion, upright, webforge

Description
Specifications

Monowills LINK, Side offset stanchion fully assembled, with a welded base plate in galvanised steel finish; stanchions can be supplied

Fittings to suit either a 32 or 40 nominal bore horizontal rails
110mm or a 13omm offset
Standard drill, or drilled one side only
With or without kickplate brackets

Weight	N/A
Material	Galvanised Steel
Unit of Sale	Each
Base Connection	Welded Base
Pipe Gauge (mm)	3.2
Pipe NB (mm)	40
Pipe OD (mm)	48.3
Rail Size	32NB (Standard), 40NB (Heavy)
Drill	Drilled One Side Only, STD Drill
Kickplate Orientation & Height	No Kickplate Bracket, Kickplate Bracket
Offset	110, 130
